Application Scope

It is suitable for high-temperature industrial plants such as factories, workshops, textile, garment, injection molding, casting, toy, printing, electronics and laundry workshops, boiler rooms; public places including shopping malls, supermarkets, waiting rooms, hotels, restaurants, hospitals and schools; agricultural venues like greenhouses, livestock farms and flower planting bases.

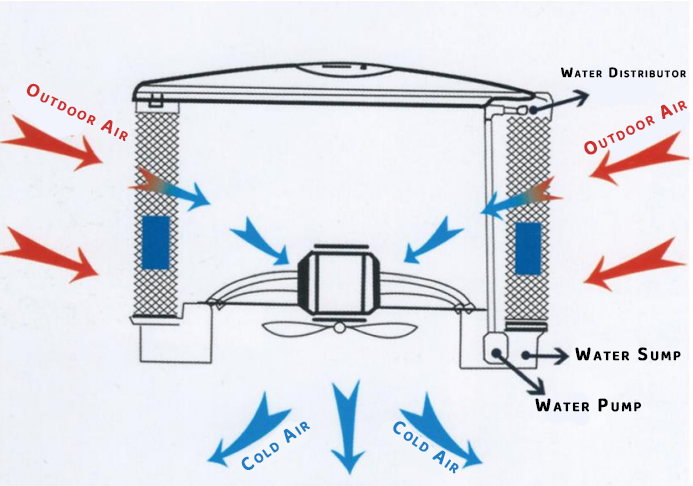

Working Principle Diagram

Technical Parameters

• Max Air Volume: 18000 m³/h, 22000 m³/h, 30000 m³/h
• Applicable Covering Area: 90–120 m², 120–150 m², 150–200 m²
• Motor Power: 1.1KW, 1.5KW, 2.2KW, 3.0KW
• Voltage & Frequency: 380V/50HZ
• Fan Type: Axial Flow
• Water Consumption: 20–25 Kg/h
• Noise: 56–71 dB
• Weight: 65 Kg
• Air Outlet Size (L × W): 670×670mm, 670×670mm, 800×800mm
• Overall Dimension (L × W × H): 1100×1100×950mm, 1100×1100×1150mm, 1280×1280×1250mm
•
