Performance Features

◆ The corrugated paper of cooling pad is specially treated for livestock breeding use, featuring high structural strength, corrosion resistance and long service life.

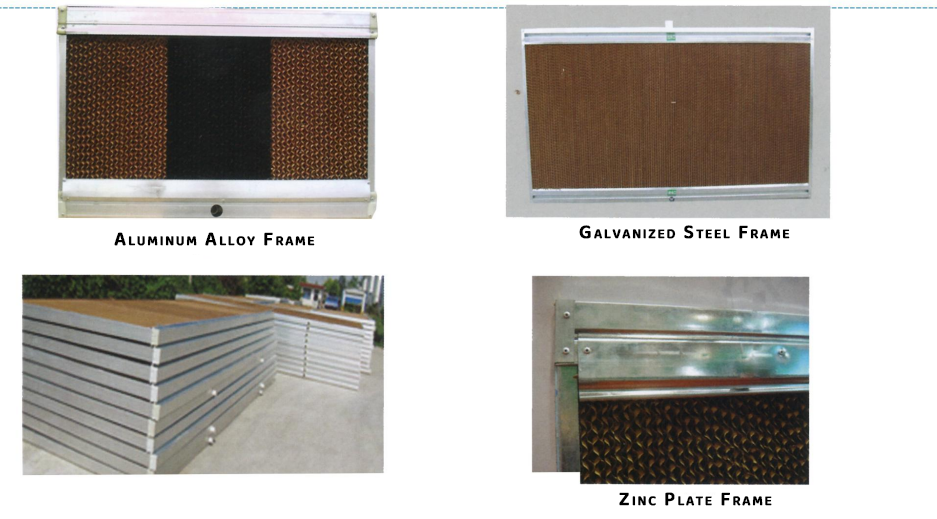

◆ It has excellent water permeability and water absorption, ensuring water evenly permeates the entire cooling pad wall. ◆ The unique three-dimensional spatial structure provides a large evaporation surface area for heat exchange between water and air. ◆ Two optional outer frames: aluminum alloy and galvanized steel plate.

Working Principle

In the negative pressure ventilation cooling system, negative pressure fans extract dirty and hot indoor air, while the cooling pad wall installed opposite the fans serves as the air intake. When outdoor fresh hot air passes through the wetted pores of the cooling pad wall, heat exchange occurs between air and water, realizing air filtration and temperature reduction.

Name Origin

It is commonly installed on the walls of factories, internet cafes and greenhouses, resembling a wall structure, hence the name "cooling pad wall".

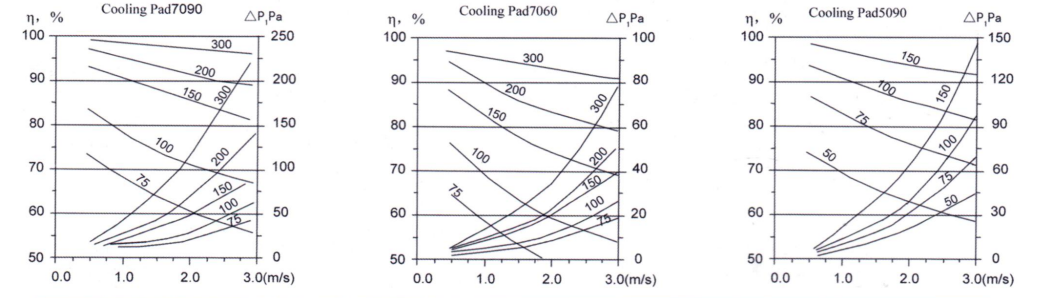

Cooling Pad Performance Curve
