Structural Features of Manure Scraper

1. Reasonable body structure design, easy installation and simple operation.
2. Stable operation with low noise; manure rarely overflows or leaves residues.
3. The traction rope is made of 304 stainless steel wire rope, adopting double-drive transmission to avoid slipping.
4. The manure cleaning plate is a 304 stainless steel scraper that can automatically retract and extend, with low friction for thorough manure removal.
5. One main unit can drive 1 to 2 scraper plates, and the scraper can be customized according to the width of the manure ditch.

Working Principle of Manure Scraper

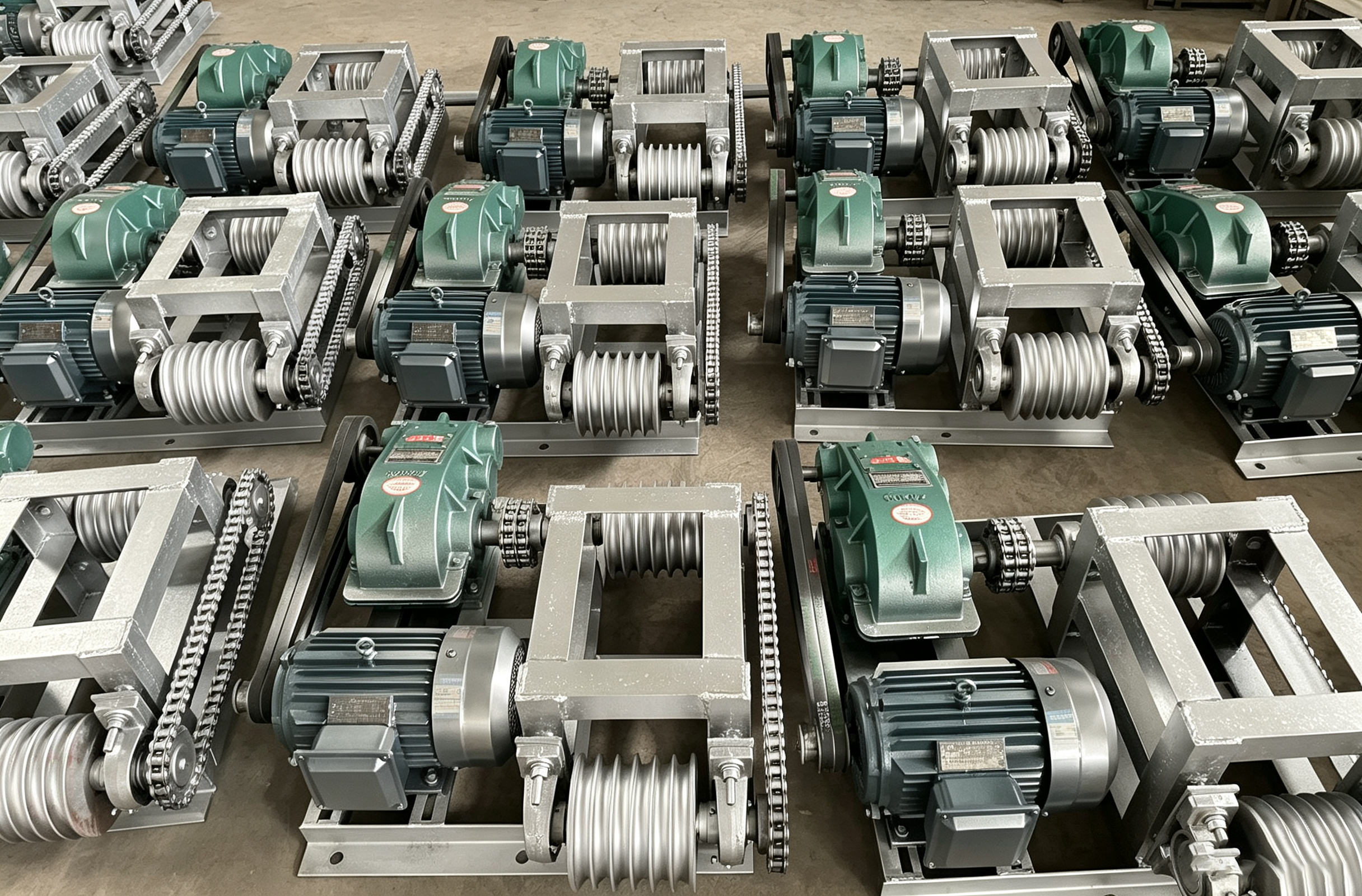

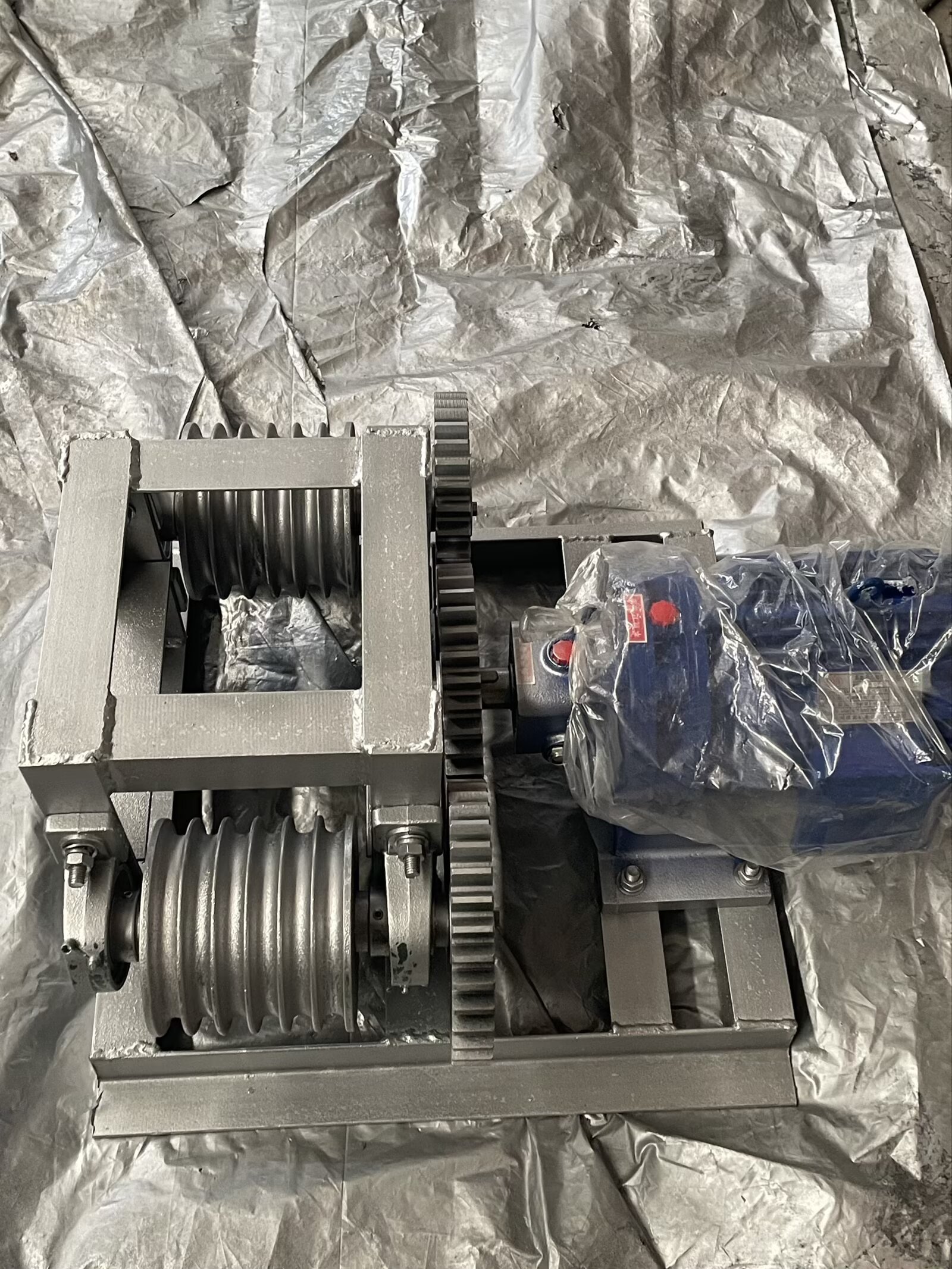

The output shaft of the reducer transmits power to the main driving wheel via chains or V-belts. The friction between the driving wheel and tensioned traction rope provides traction to drive the scraper for reciprocating movement. When working, the crescent sliding block on the scraper touches the ground to lower the scraper automatically; when returning, the scraper lifts automatically to complete manure cleaning.

Performance Features of Manure Scraper

1. The fully automatic pig pen manure scraper is equipped with advanced national standard cycloidal pinwheel reducer to ensure a reasonable transmission ratio.
2. Direct-coupled motor and reducer design saves space and simplifies operation.
3. Thickened scraper plate greatly extends the service life of the machine.
4. The scraper plate is formed by CNC machine tools for high precision.
5. The transmission chain features excellent wear resistance, corrosion resistance and long service life.
